Model
|

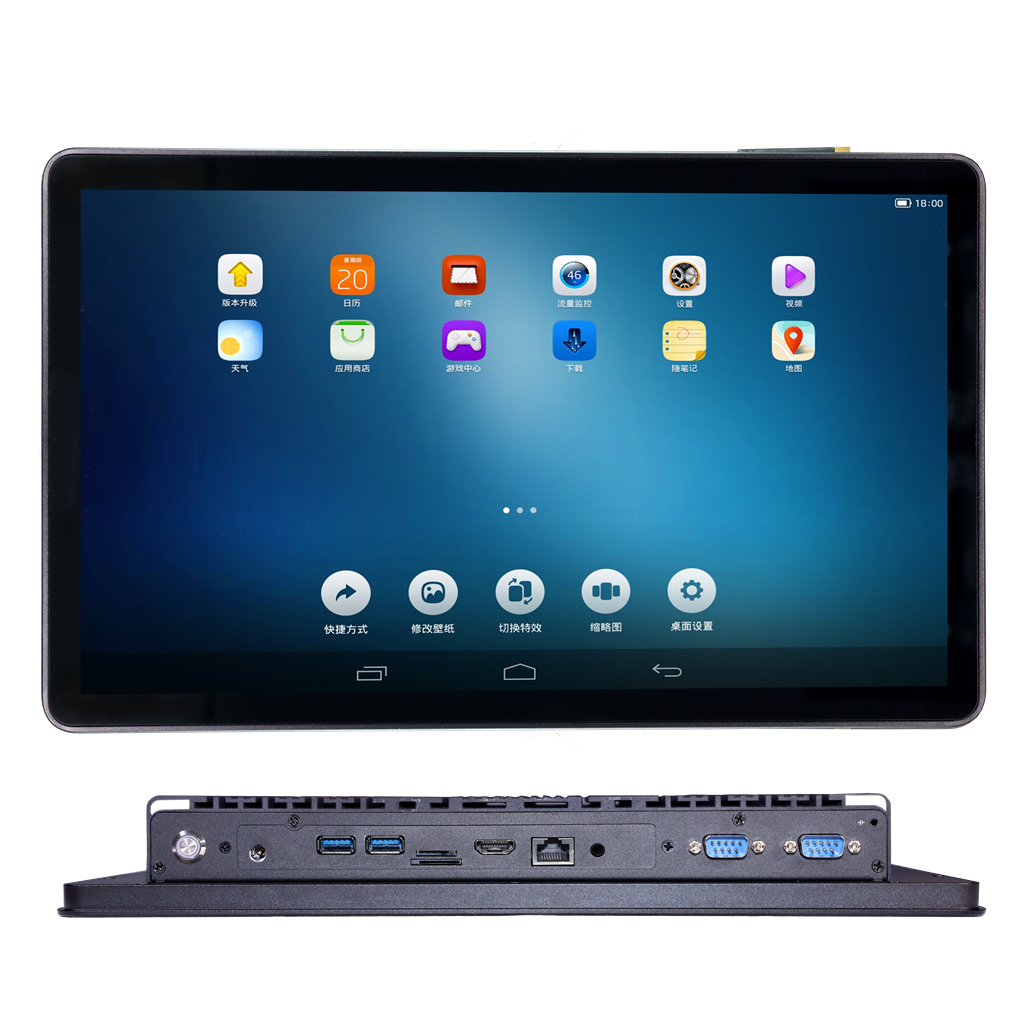

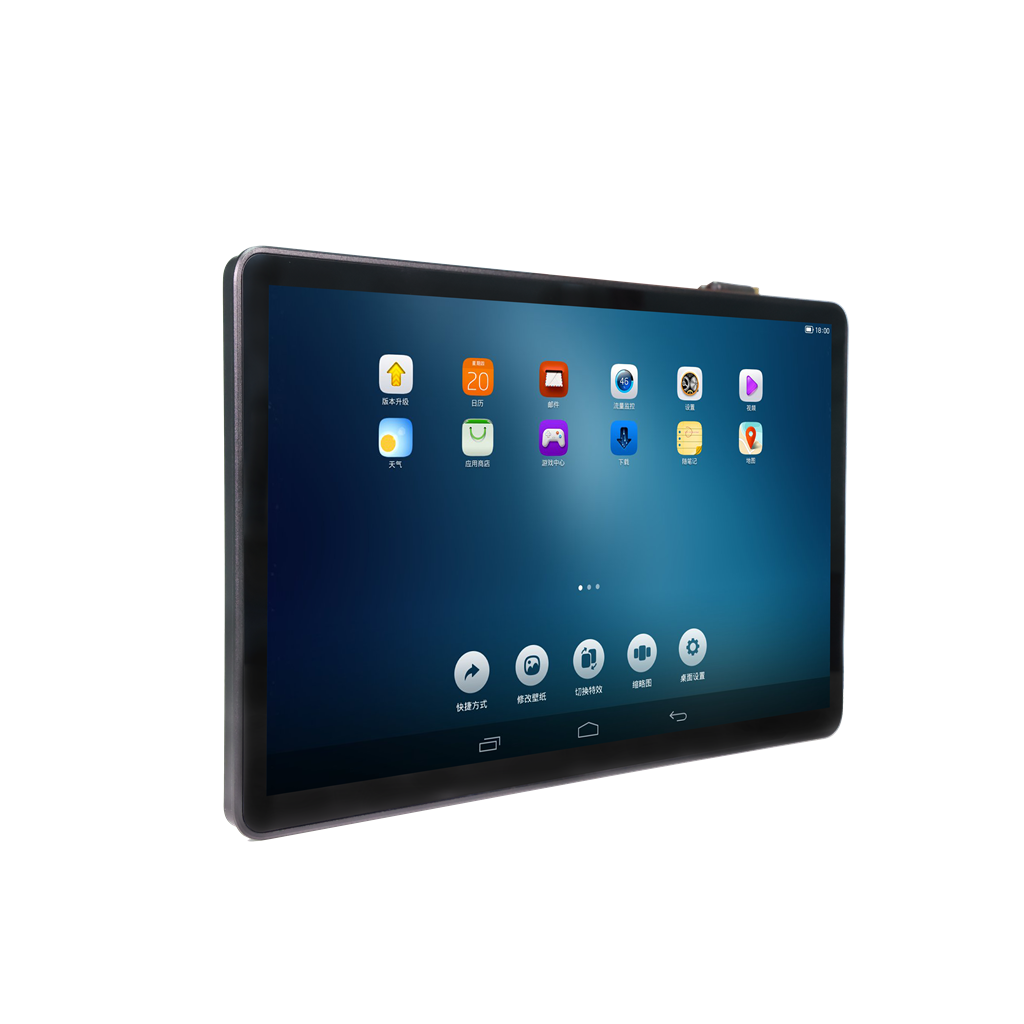

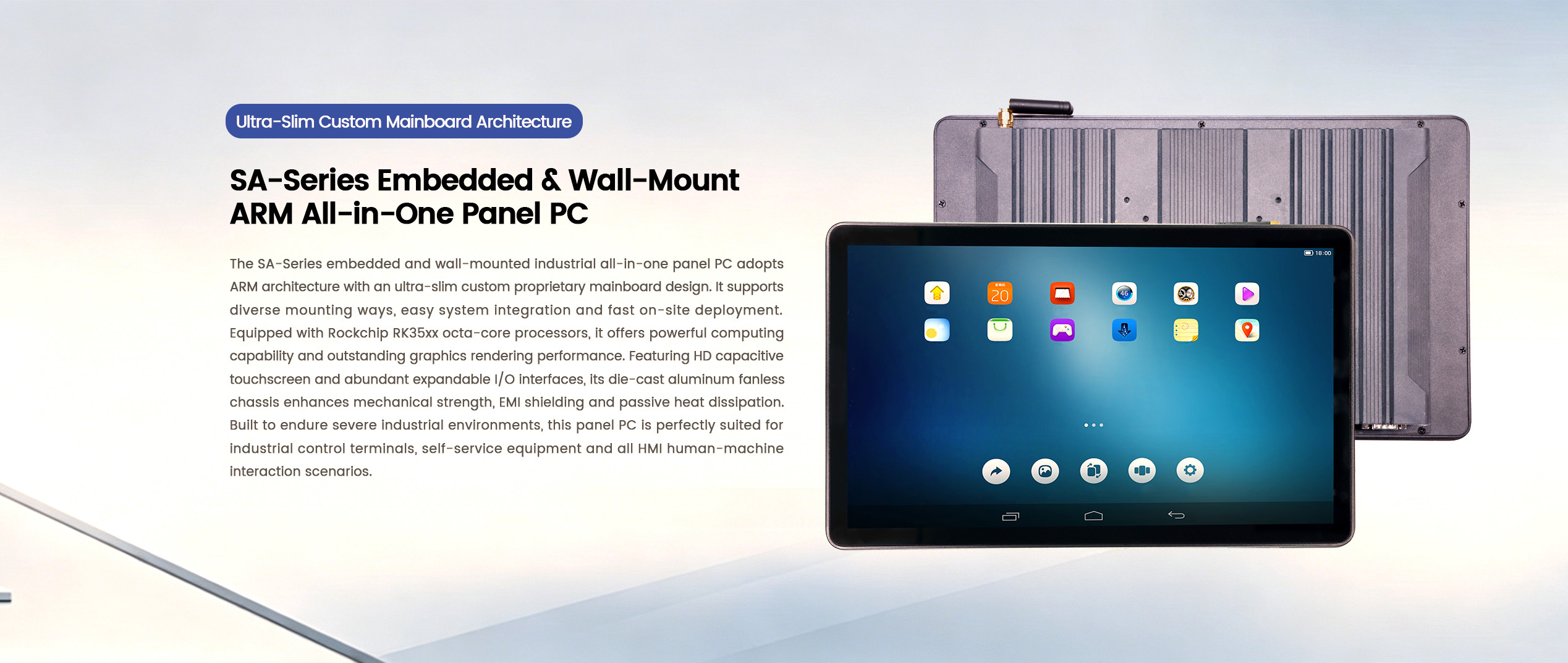

ARM All-in-one Panel PC _ TC101AC
|
|
Operating System
|
Android 14.0, GMS Certification
|
|
CPU
|
8-Core, RK3572 Octa-Core Processor, 4×A72 + 4×A53 Cores
|
|
RAM
|
4GB
|
|
FLASH
|
64GB
|
|

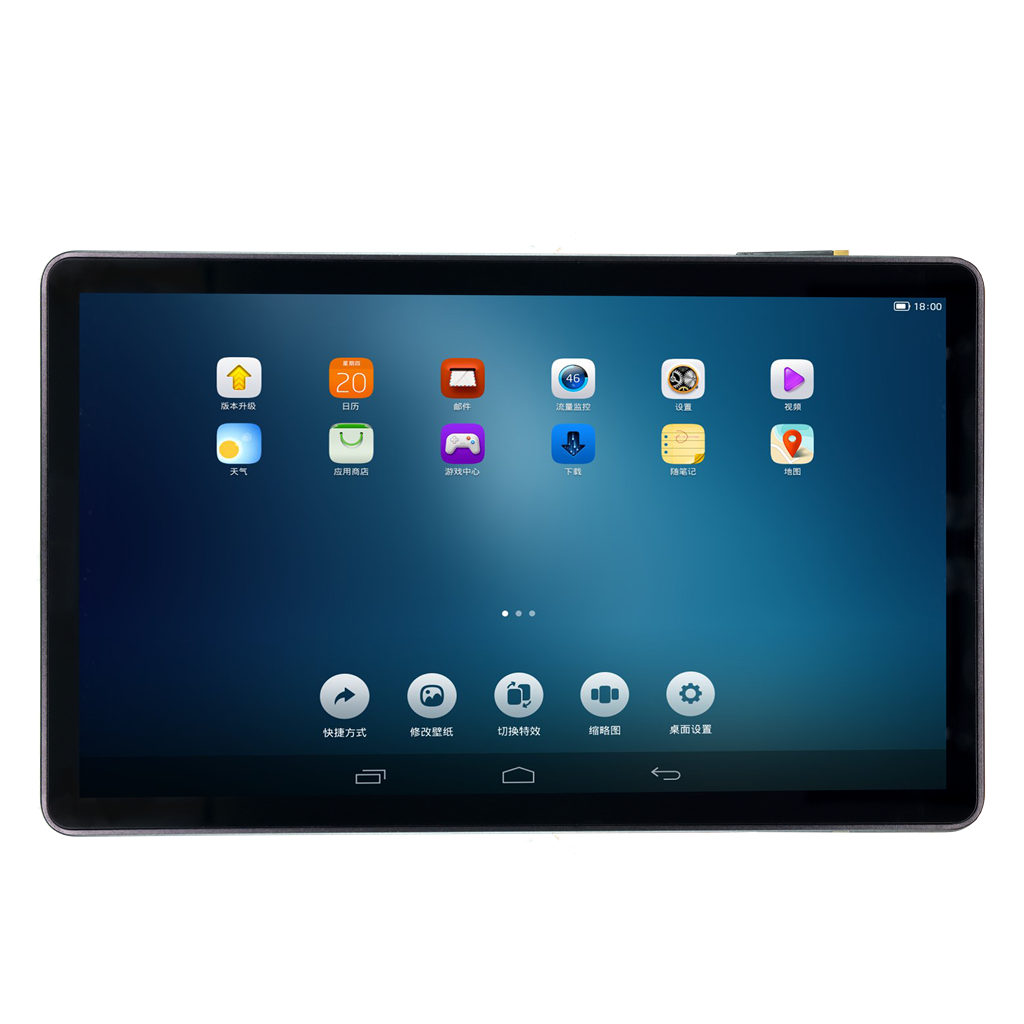

LCD Screen
|
10.1 inch Incell panel
|
|
Display Resolution
|
1280*800 IPS
|
|
Active Area
|
216.58（H）* 135.36（V）mm
|
|
Back Light
|
ELED
|
|
Touch Screen
|

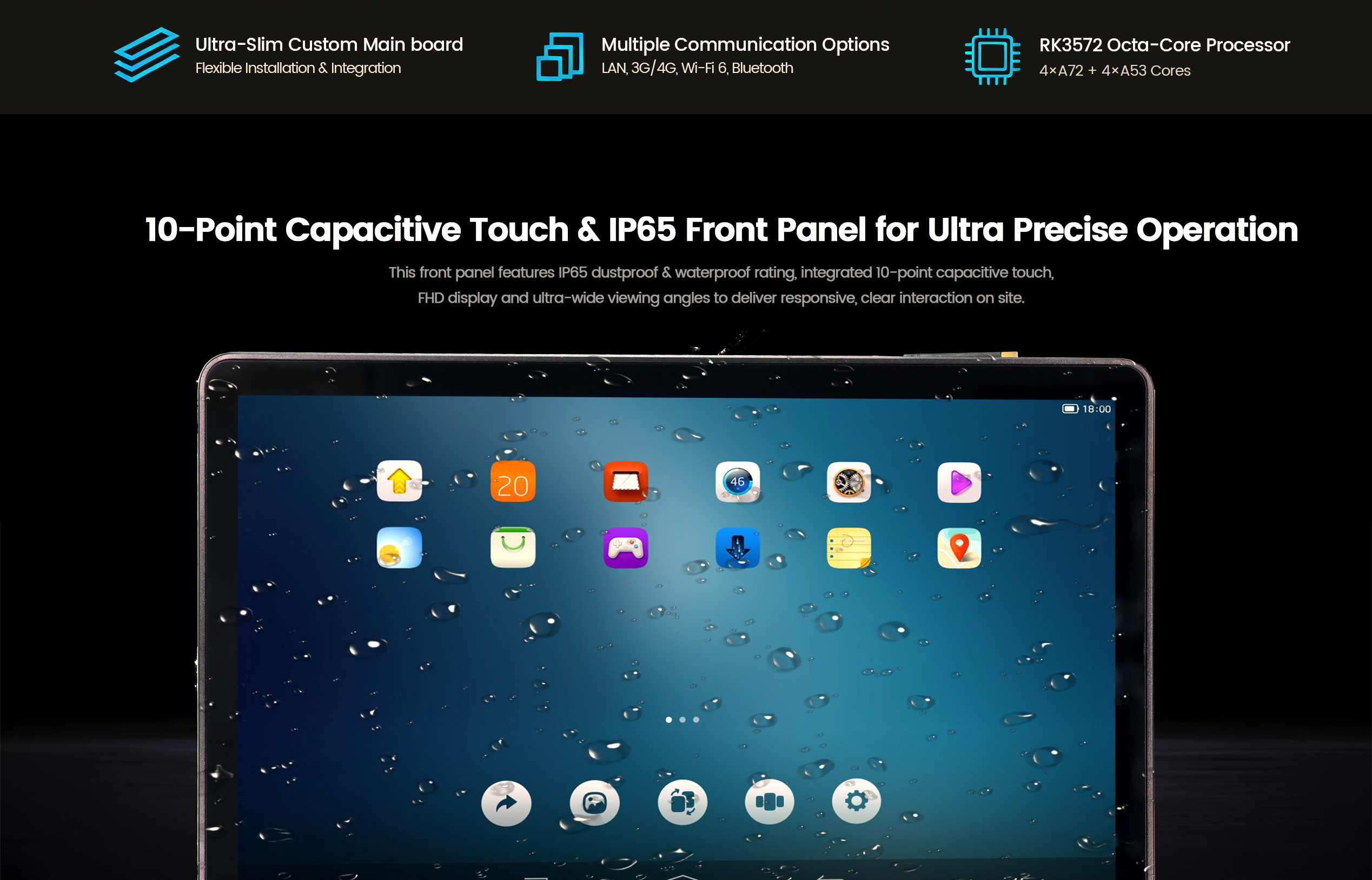

Capacitive Ten-Point Touch, Optical Bonding
|
|
Brightness
|
300 cd/㎡
|
|
Contrast Ratio
|
1000:1
|
|
Display Colors
|
16.7 M
|
|
Response Time
|
30ms
|
|
Refresh Rate
|
60Hz
|
|
View Angle
|
170°
|
|
Power Input
|
DC 12~36V
|
|
Power Consumption
|
≈15W
|
|
Standby Power
|
0.5W
|
|
Socket Type
|
Round head, Type 5525
|
|

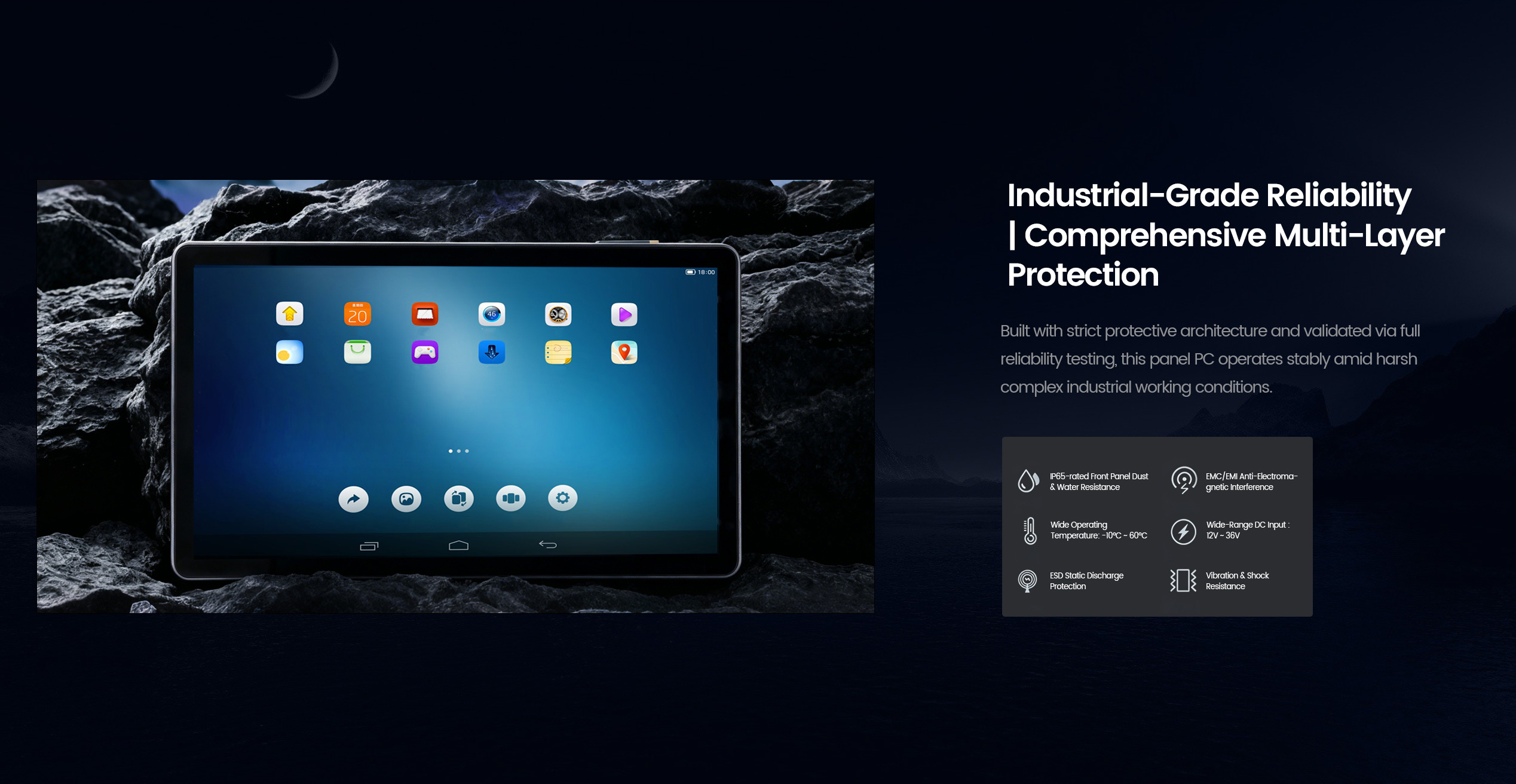

Protection Level
|
IP65, front panel
|
|
Outline Dimension
|
247.4mm*166mm*22.8mm
|
|
Opening Dimension
|
242mm*160mm, R9.7mm
|
|
Package Size
|
348mm*266mm*123mm
|
|
Net Weight
|
0.76kg
|
|
Gross Weight
|
1.96kgs
|
|
Installation Method
|
Embedded
|
|
Working Temperature
|
0°C ~ 50°C
|
|
Working Humidity
|
10%～90%RH（Non-condensing）
|
|
Storage Temperature
|
-10°C ~ 60°C
|
|
Storage Humidity
|
10%～90%RH（Non-condensing）
|
